SettingDefaultAWIOSDManagement Console
Enable HD AudioDisabled
Enable AudioEnabled
Enable Local USB Audio DriverEnabled
Enable Dual Audio Ouput--
Enable Opus Audio CodecEnabled
Audio Input
Device TypeUSB
Preferred USB Device Vendor ID0000
Preferred USB Device Product ID0000
Attached USB Devices--
Audio Output
Device TypeUSB
Preferred USB Device Vendor ID0000
Preferred USB Device Product ID0000
Attached USB Devices--

You can configure audio settings for the Tera2 PCoIP Zero Client from both the OSD and AWI.

 Info: Enabling HD audio

You can enable HD audio from the AWI Initial Setup page. To enable HD audio from this page, see Configuring Initial Setup Parameters.

You configure audio parameters from the OSD and AWI Audio pages (shown next).

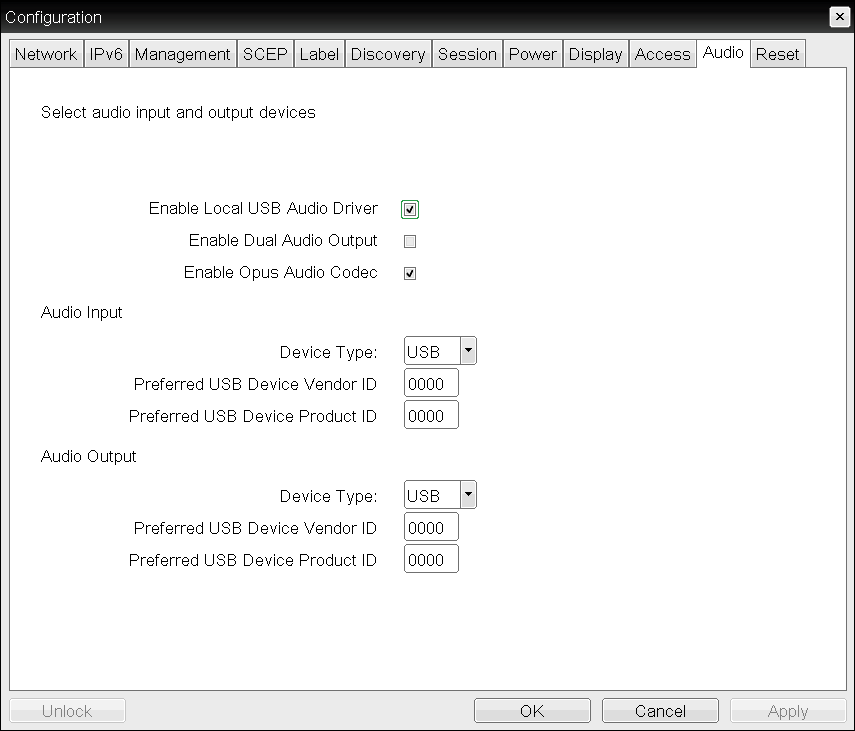

OSD Audio page

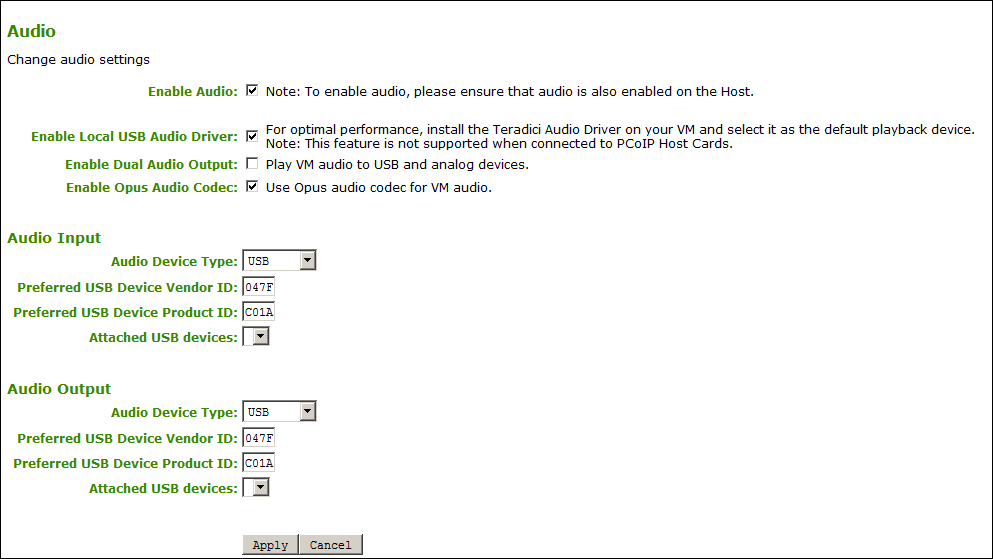

AWI Audio page

The following parameters display on the OSD and AWI Audio pages:

Audio Parameters

ParameterDescription

Enable Audio

(AWI only)

When enabled, configures audio support on the device.

 Note: Enable the property on both host and client

This property must be enabled on both the host and the client.

When disabled, the audio hardware is not available for the host operating system to enumerate.

Enable Local USB Audio Driver

This option locally terminates any USB audio devices that are attached to the Tera2 PCoIP Zero Client.

When enabled, the audio stream is moved out of the PCoIP USB data channel and into a PCoIP audio data channel that handles lost and out-of-sequence packets without retransmitting them. The audio data are also compressed, resulting in bandwidth savings and a much improved sound experience.

When this option is not enabled, USB audio devices are bridged to the host, and the audio stream is embedded in the PCoIP USB data channel as uncompressed audio data. This data channel retransmits lost and out-of-sequence packets, which can affect audio performance in adverse network conditions.

 Note: Install the Teradici Audio Driver for audio support

For bi-directional audio support (for example, microphone as well as playback), the Teradici Audio Driver must be installed on your VM and selected as the default playback device.

 Caution: You can't use the local USB audio driver for all configurations

If you use a USB composite device that contains audio functionality but also has one or more functions that must be bridged (that is, terminated remotely so the host OS can install the driver), you can't use the local USB audio driver for the device.

Enable Dual Audio Output

When enabled, all VM audio is sent to both an external speaker and a USB headset.

Enable Opus Audio Codec

When enabled, the Opus audio codec is used for audio output from software hosts to clients if supported by the host.

Audio Input

The options in this section enable you specify the preferred device to use for audio input (recording). Teh options are available when you select Enable Local USB Audio Driver.

Audio Device Type

This field applies when you enable the Enable Local USB Audio Driver option and both an analog input device and a USB input device are connected to the Tera2 PCoIP Zero Client. Since you can only use one audio device at a time when devices are locally terminated, select the type of device you want to use:

  • Analog: The analog input device plugged into the analog input jack on the Tera2 PCoIP Zero Client will be used for audio recording.
  • USB: The USB input device attached to the Tera2 PCoIP Zero Client will be used for audio recording. If more than one is attached, the Audio Input options let you specify the preferred one to use.

Preferred USB Device Vendor ID

This field is automatically populated with the USB device’s vendor ID (VID) after you select the preferred audio input device in the Attached USB devices list and apply your changes. You can also manually enter the VID of the preferred attached USB device.

 Note: This option doesn't apply to certain audio devices

This option doesn't apply to analog audio devices.

Preferred USB Device Product ID

This field is automatically populated with the USB device’s product ID (PID) after you select the preferred audio input device in the Attached USB devices drop-down list and apply your changes. You can also manually enter the PID of the preferred attached USB device.

 Note: This option doesn't apply to certain audio devices

This option does not apply to analog audio devices.

Attached USB devices

(AWI only)

In the list, select the preferred USB device to use for audio input.

 Note: This option doesn't apply to certain audio devices

This option doesn't apply to analog audio devices.

Audio Output

The options in this section enable you to specify the preferred device to use for audio output (playback). Teh options are available when you select Enable Local USB Audio Driver.

Audio Device Type

This field applies when you enable the Enable Local USB Audio Driver option and both an analog output device and a USB output device are connected to the Tera2 PCoIP Zero Client. Since you can use only one audio device at a time when devices are locally terminated, select the type of device you want to use:

  • Analog: The analog output device plugged into the analog input jack on the Tera2 PCoIP Zero Client will be used for audio playback.
  • USB: The USB output device attached to the Tera2 PCoIP Zero Client will be used for audio playback. If more than one is attached, the Audio Output options enable you specify the preferred one to use.

Preferred USB Device Vendor ID

This field is automatically populated with the USB device’s vendor ID (VID) after you select the preferred audio output device in the Attached USB devices list and apply your changes. You can also manually enter the VID of the preferred attached USB device.

 Note: This option doesn't apply to certain audio devices

This option doesn't apply to analog audio devices.

Preferred USB Device Product ID

This field is automatically populated with the USB device’s product ID (PID) after you select the preferred audio output device in the Attached USB devices drop-down list and apply your changes. You can also manually enter the PID of the preferred attached USB device.

 Note: This option doesn't apply to certain audio devices

This option doesn't apply to analog audio devices.

Attached USB devices

(AWI only)

In the list, select the preferred USB device to use for audio output.

To configure audio settings:

  1. Open the Audio page:
    •  From the OSD, select Options > Configuration > Audio.
    •  From the AWI, select Configuration > Audio.
  2. From the OSD or AWI Audio page, update the audio settings.
  3. To save your updates, click OK from the OSD, or click Apply from the AWI.
